Levelling the tower

Despite the tower foundation is level it seems my tower itself isn't. It is one of the things I have to get right before I can think about mounting antennas. Not that you can't mount antennas in a mast that is off level but I don't feel right about it personally. I guess I'm a bit autistic ;-). I have to say that it gave me a headache more then once. How to get a antennatower of several hundred kilos of steel levelled....


First of all I wanted to have a good path around the antenna as I didn't want to stay or sit in the mud when working on the tower. Besides that it looks a lot better in the garden. Unfortunately I was just short of 12 tiles so a tiny piece of grass that has to be cut is left...








Back to levelling then. The mast is over 40 years old and so I guess there is some wear. There is plenty of room at the hinged part of the mast which gives some possebilities. I choose to correct the tower at the base. Not easy but after some welding, grinding and breaking several drills I finally got it right. Some photos:

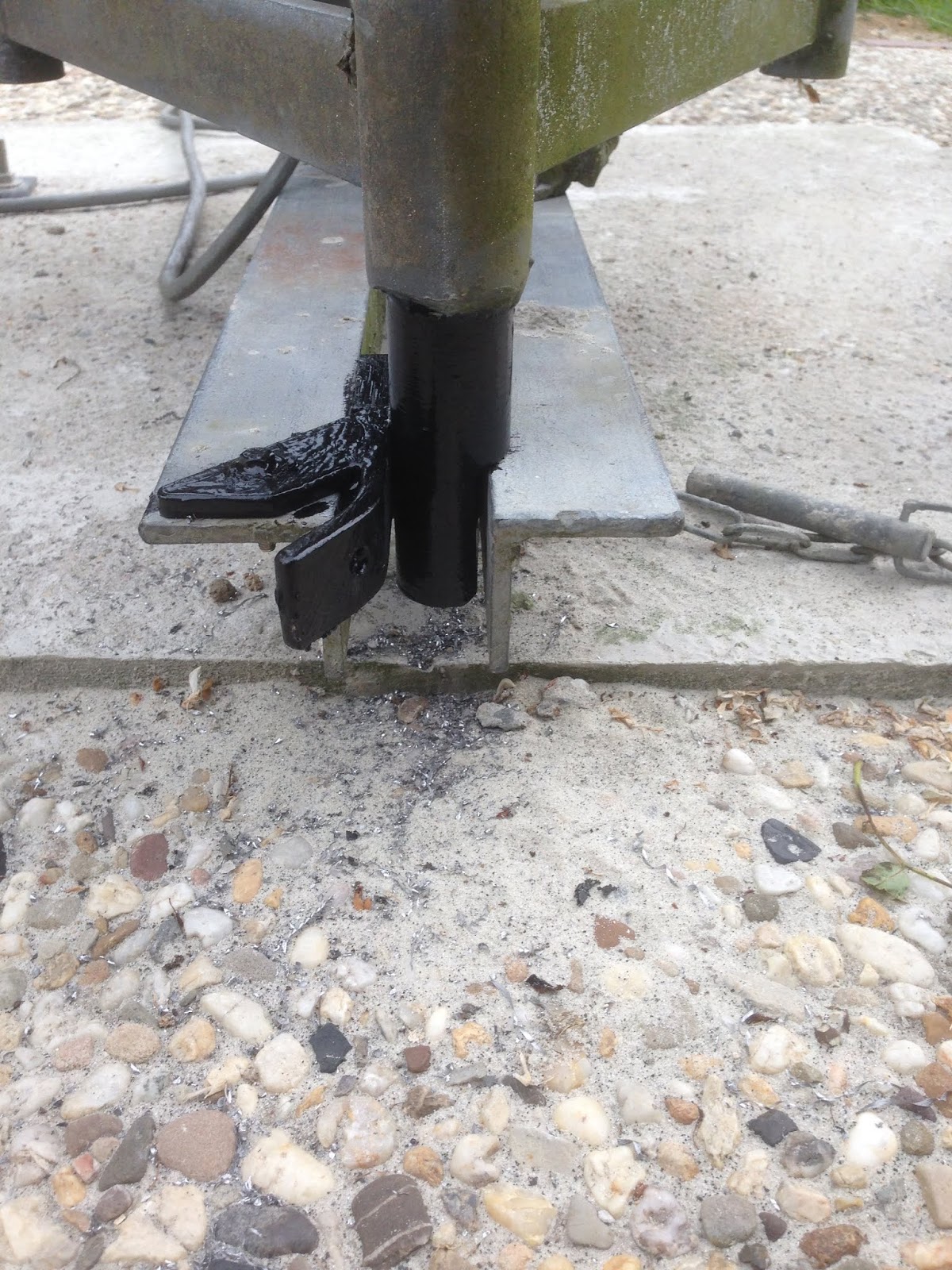

Correction part at the base

Correction rings at the hinge

Correction cutting and grinding base part of the tower

Fits nicely!

Reasonable level at the hinge now

Level


So, I thought I was ready now till I wanted to pull out the telescopic part of the tower....disaster strikes. The stainless steel cable broke and the part went down into the security lock. I'm happy there is some kind of security on that part....
