2022 highlights, 2023 goals

  The year 2022 is almost over. And again I was infected by the covid-19 virus this month like last year in December. Luckely I feel fine now, last year took longer. I didn't make as much blog posts compared to previous years, but it doesn't matter. You can't write about every contact or idea. Most of the time I write a posting when something comes on my mind, but this year that was not really much. The start of this year went slowly, I didn't even make a single QSO in January. However that month I did some interesting antenna/receive comparisations with the help of WSPR mode. Something that I intend to do again this year. Unfortunately the electricity and (natural)gas bill has been rising since the Russians invaded Ukraine and for me it is now a matter of looking for a good alternative like solar power to power my radios and computers especially if I want to do 24h comparisations on WSPR. Well you have now been reading some goals for 2023 as well I guess ;-).

I finally reached (confirmed by reports via internet) 100 DXCC on WSPR with 1W output. It is still not possible to extract the DXCC info automatically importing the WSPR reports into some software or online website. It seems no one is interested in this kind of information. However for me it was a nice challenge. If it was not that time (and electricity) consuming I would have done it again with 100mW output. But only if things could be extracted from the data with some kind of software. I'm just not smart enough to make or program software like that. Hopefully someone will pick it up in the future.

After trying various digital communication programs on air I experimented wit VarAC this year. The main advantage is that it doesn't use time slots like JS8Call which is based on the WSJT software. I have been posting about several updates and was happy to see one of my ideas implemented. I made a few great QSOs with the program and really had a blast. The software is being continuously updated with all kind of features. But I think that is also the pitfall of this software. Too many features will make it too complicated. People already notice that there is less QSOs being made. I didn't even bother to install the latest version actually. Only downloading the needed updated VARA-HF gives so many problems that I gave up for now.

Both DXing on 60m as 6m/4m in the 2022 ES season went well. Resulting in 5 new DXCC on 60m, 5 new on 6m and 5 new on 4m. And unexpected I worked 5 all time new one DXCC on HF. I really don't need to prove anything, this is just a personal challenge. So many HAMs take the DXCC challenge way too serious. Really, what happens with all your gathered DXCC, QSL cards and DXCC fame? It will be quickly forgotten when you die. The main thing in this hobby is personal challenges and contacts with other people who have the same interests. This is why I write this blog. Hopefully it stays online for many years even after I'm not here anymore.

Experimenting with antennas is what I always like so much. Not that I have any idea what I'm doing but at least I'm having fun. This year PA9X gave me the idea of building the multiband square halo. I had some parts from an old PDL2 CB antenna I could easily use and the antenna was made and tuned. I have to say I was surprised by the results compared to my multiband vertical and the previous installed Butternut HF5B. The antenna is still in my tower and still working well. I need to make some comparisation with the help of WSPR soon. I remember the multiband vertical was worse on 20m compared to my inverted-V. This halo antenna is certainly better on 20m, but how much?

Well, the rest of the year I did some repairs, enjoyed a few contests, forgot some contests and enjoyed radio on all modes I have available. I don't want to be limited to SSB only to work nice DX. But certainly I prefer SSB and it is still my main mode.

What to do in 2023? What are my goals? I really don't know this time. I might try to learn more CW this year. On the other hand, I have lots of work to do on the house. So may be I will be less radio active?

We will see what 2023 brings...

Wish all readers of this blog a very good, prosperous and healthy 2023.

#10m ARRL contest - some video recordings

  Always like to record some interesting signals I heard on 10m this weekend during the contest. Actually one QSO I forgot to record was with 4X1YOTA. I spoke with Shani from Tel Aviv who is 13 years old and we had a small QSO which went very fine. Hopefully it will encourage her to engage in this great hobby. For me this contest is not always about the numbers. I really like to have some interesting QSOs and encounter interesting signals/propagation. You will hear some excellent signals in the video from far way DX both on short as long path. And a festival of echoes for EI7M, I could hardly understand this station. I wonder if he heard those echoes at his side as well...

The Russians, plenty of them in the contest this time. But they don't make themselves very populair. Unfortunately some are raging against them on the DX cluster(s). Really....is this neccessary?

I had a call from a Russian station in the contest were he gave me the progressive number in russian, I asked him to do it in English or German. His answer was "only ruski, only ruski". Why calling at the first place? Interesting though, I have never been called by someone that could only give the exchange in their own language. I would understand numbers in english, german, french, italian and spanish. But other languages will be difficult.

#10m ARRL contest day 2 + review

  Second day of the contest. I decided to be on the radio early and before sunrise. Again I was surprised, even when it was still dark here the 10m band was full of sound. Amazing propagation.

QSOs in the ARRL10 2022  --  Red=SSB - Green=CW

  I managed to work New Zealand this time with ZL4CZ. It was years ago that I spoke to ZL on 10m. It always remembers me of the numerous QSOs with this country on the 11m (CB) back in the early ninetees of last century. I worked lots of interesting DX but most interesting I think was the QSO with YI1WWA. This seems to be a new station from Iraq. When was the last time you heard or spoke a station from Iraq? This is certainly not heard every day. Unfortunately I was not on the radio all the time since of course there are other things in life. I missed the largest opening to the USA. Although I worked a few from Canada this time. No pile-ups like in the CQWW unfortunately. Hopefully that will happen next year if possible. Around 16:30 UTC the band closed. Last one I worked was PA0O who is from my neighbourhood. Although I did some CW I will send my log in for the SO SSB low power section. I had a lot of fun chasing the DX this weekend...

#10m ARRL contest day 1

  Propagation decreased very fast after sunset and around 17 UTC the 10m band was closed, only noise could be heard. But the day started so different. Actually I woke up when it was already light. From previous years I remembered 10m propagation could be a slow start, so I didn't expect much when I switched the radio on at 7:30 UTC. But surprisingly I was late today. First station I heard and worked was VR2XAN from Hong Kong. He was real 59 on SSB. Actually many other DX could be heard. Working Australia, several stations, was no problem. Strangely nothing heard from Japan, China and New Zealand. Although I noticed several stations south of me had no problem to work these countries.

Click on the map to see a large version - Red=SSB - Green=CW

I took my time to work and listen to the DX. And even had a QSO with fellow blogger OQ5M Franki on backscatter. Lots of echoes on the band. I expected (wished for) some longpath propagation, but it didn't happen unfortunately. Actually I worked less stations as expected, aimed for 100 but it became only 87 today. Also due to disappointed propagation to north america. The ARRL country is known for the amount of participants but I could barely make contacts to the USA and not even to Canada. Besides that you need skills to make contacts on CW, I dont have them (yet).

Hopefully propagation to that direction will be better tomorrow. If I didn't work you yet, try for me tomorrow ;-).

10m ARRL contest this upcoming weekend

2020 score to beat...

  Unfortunately I was not able to attend the 10m ARRL contest last year due to health and family issues. But this weekend I plan do spend some hours on the radio trying to make some contacts in this contest.

You would not believe it but just like last year I was again infected by the covid-19 virus. Unable to go to the job last week I though to have time for my favorite radio hobby. But unfortunately I felt too bad, I tried a few times but couldn't concentrate. Anyway feel better now and hope that I will not have issues this weekend.

I probed 10m for DX today and was a bit disappointed at first. Nothing to hear on SSB. I checked the 11m band for DX and heard a few stations but not that much. I checked the FT8 frequency.....it was full of DX.

Well later on around sunset I did hear some SSB but signals were marginal. I hope there propagation will be better tomorrow...

40MHz (8m) band in the Netherlands

40MHz RF board without CE mark



  Recently G3XBM noted in his blog that in the UK it is possible to do experiments on the 8m ISM band without a license. In earlier posts he wrote that this could be valid in other countries as well. That sounded interesting and worth investigating. So after gathering info on a Dutch hamforum and searched for possible laws on the subject I decided to write the Dutch telecom authority Agentschap Telecom. I asked if I could use 40,680 MHz and transmit FT8 and/or WSPR datamode with 10mW. I also asked if I was allowed to actual make a communication contact with these mode. The answer here in Dutch which I will translate below the original mail:

De genoemde band is beschikbaar voor Non-specific Short range devices. Dat wil zeggen allerlei gebruik mag hier gebruik van maken.

Het gebruik is in die zin niet anders dan in b.v. de vergunningsvrije 433 MHz en 863 – 870 MHz.

Communicatie met derden is dus toegestaan mits het maximaal uitgestraald vermogen van 10 mW niet wordt overschreden.

Er is echter een belangrijke randvoorwaarde:

In de zendamateurbanden mag een radiozendamateur met zelfbouwapparatuur werken die niet aan die eisen hoeft te voldoen. Voor de 40 MHz geldt die uitzondering niet. In artikel 2 lid 3 van de Regeling gebruik van frequentieruimte zonder vergunning en zonder meldingsplicht 2015 wordt geëist dat de apparatuur moet voldoen aan de essentiële eisen van de Radio apparaten richtlijn om vergunningsvrij gebruik te kunnen maken van deze band. Door de fabrikant moet een Declaration of Conformity worden opgemaakt en de apparatuur moet een CE markering hebben waarmee de conformiteit met de eisen van de Radio apparaten richtlijn wordt bevestigd.

Als u aan bovenstaande eisen voldoet is het gebruik toegestaan.

The translation:

The mentioned band is available for Non-specific Short range devices. That is to say, all kinds of uses are allowed to use it.

In that sense, the use is no different from e.g. the license-free 433 MHz and 863 – 870 MHz.

Communication with third parties is therefore permitted provided that the maximum radiated power of 10 mW is not exceeded.

However, there is an important precondition:

In the amateur radio bands, a radio amateur may work with home-built equipment that does not have to meet those requirements. This exception does not apply to the 40 MHz. Article 2 paragraph 3 of the 2015 Regulation on the use of frequency space without a license and without a notification obligation requires that the equipment must meet the essential requirements of the Radio Equipment Directive in order to be able to use this band without a license. A Declaration of Conformity must be drawn up by the manufacturer and the equipment must have a CE mark confirming conformity with the requirements of the Radio Equipment Directive.

If you meet the above requirements, use is permitted.

--

Use is permitted, that's what we all want to read. But the problem is that we cannot meet the above mentioned requirements. Yes, a modified FT-817 will transmit on 40,680MHz, But.....if you modify existing transceivers it will loose the CE mark and a conformity with the requirements of the radio equipment directive because it is not made for use on this band. In the Netherlands we are also prohibited from using amateurradio equipment on the 433MHz and 863-870MHz ISM band as well as using these radios on the 27MHz (ISM and legal CB) band.

However, if there is a manufacturer that makes commercial 10mW 40MHz transceivers or transmitters with CE mark and a radio equipment directive conformity I would like to know? Because we could use such equipment to do experiments on the 8m band.

CQWW DX CW 2022 contest review

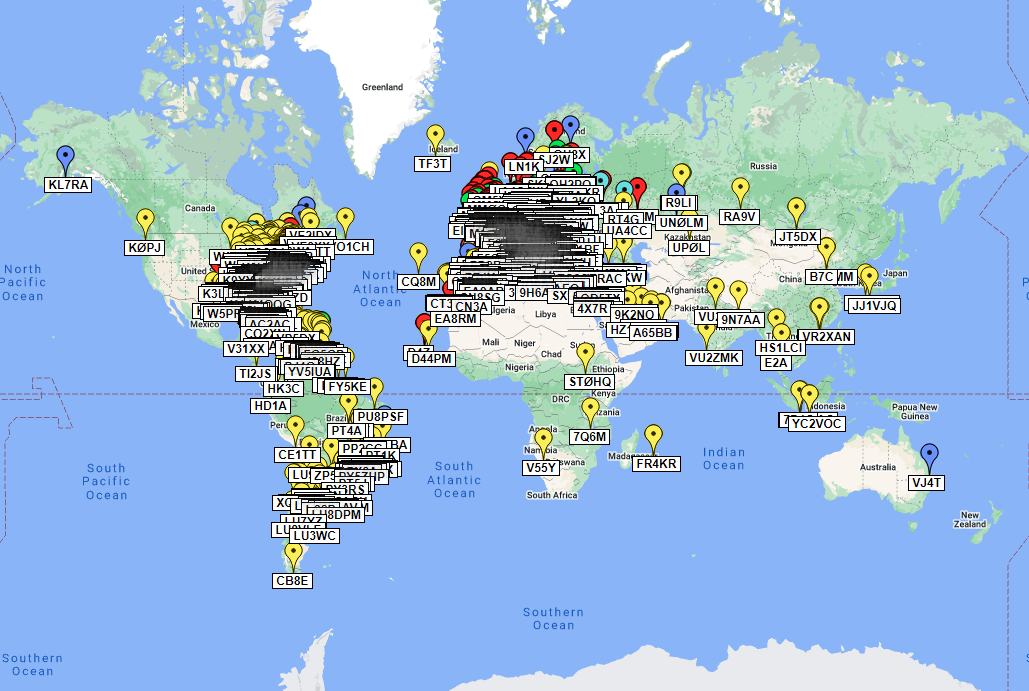

Results CQWW DX CW 2022 - yellow=10m, lightblue=15m, blue=20m, green=40m

While I write this the CQWW DX CW contest is still on. But I have had enough CW this weekend. According to the stats I spend 8 hours at the radio this contest, not that much but well spend. My goal was to work the most interesting DXCC and if possible an all time new one if available. Another goal was trying to find some fellow hamradio bloggers. Actually the first contact made this contest was with blogger VE9KK Mike from east coast Canada. I met him again today on 15m. By coincidence I made a contact with blogger AE5X John as well on 20m, not shure he was in contest since I later heard him on 17m with CQ pota. So, the next goal was to find an ATNO....not the easiest task. I found VK9DX this evening on 40m and spend at least a hour to work him in the end. Norfolk Isl. was not yet on my DXCC list.

Well, since I was looking for DX and most of my time spend at the radio in daylight I only worked in 40-10m. Nothing on 160m/80m this time. I really didn't care about the amount of QSOs, the only thing that counted for me is to work the interesting DXCC and stations from my point of view. I think I did well. At least I had fun and hope others did too.

I have to say I did encounter some interesting propagation. At sunday I worked Japan in the afternoon on longpath on 10m. Not long after that I worked a station from the USA while the path was not really open yet to the US. Strangely enough I had to point my beam to south America, directing it to the US made the signal a lot weaker. Later, after sunset 10m closed early today I suddenly worked some stations from the UK, Corsica and Germany.....actually those are normally in the skipzone on 10m.

I think it is a sign propagation is rising fast. Hopefully we will encounter this special propagation again soon in the ARRL 10m contest in December.

The QRP(p) powermeter revisited and more meter repairs



  8 years ago I did need a QRPp powermeter to measure an output of approx 10mW to use on WSPR. The original article on my blog showed a foggy photo and it was a job in a rush. In my current SWR/power meter repair I needed some resistors that were luckely still in this meter. So I decided to use them for the broken Stabo SWR/Power meter and rebuild the QRP(p) meter a bit. I also made better photos. I disabled the SWR meter function and only use the power meter part. To calibrate I use my FT-817 at 1W and adjust with the potmeter to full scale. Then I adjust audio to 100mW output and adjust the potmeter to fullscale again. After that I adjust audio till 10mW can be read on the meter. I realize this is an indication but I don't want to use attenuators because it would limit my receive as well.  At the moment I'm researching the possebility to experiment on 40MHz WSPR/FT8 with 10mW ERP without a license after some blogposts from G3XBM about this matter.

  Back to the repairs. I bought a nice Stabo SWR/Power meter on the last radiorally I visited. Unfortunately this device was defective, I could read forward power but the pointer didn't move when I wanted to see my actual SWR or reflected power. At first I measured all diodes, all did show correct readings. Next I measured the switch, it was ok. Next the potmeters, I noticed on didn't have any resistance at all. After removing the thing I noticed why, it was broken. Now searching for 200 Ohm potmeters in my pile of electronic waste I could not find any good ones, most are in the K ohm range. So that is the point I decided to get them from my QRPp meter.

  This is the SWR bridge from the QRPp meter. It contains two 130 Ohm resistors. However the Stabo meter use 2 potmeters of 200 Ohm. I removed the resistors and soldered them in the Stabo meter. Readings are not correct. With a 50 Ohm load I read a SWR of 1,8:1. I reverse the input/output leads (TX signal at antenna side) to see of it would change but same reading there as well.

  I think that is is a matter of a poorly designed pick-up transformer, actually no transformer as well. The signal pick-up is just 2 wires wrapped around the tube that is connected to the inner side of the connectors. You see this often in cheap SWR meters. Wish I could exchange the bridge for the one from the QRPp meter because that one looks a lot better and I know it is very accurate. Anyway in the end I replaced the resistor at the side of the reflected power pick up with the 200 Ohm potmeter that was still ok.

  This time I could calibrate SWR almost 1:1 with a 50 Ohm load and 1:3 with a 150 Ohm load. Besides that I had to calibrate the power meter as well. It showed 3,5W when 5W was applied. Still it is not very accurate, even not after the calibration. I know the output of my FT-817 is pretty right what is should do. If I measure it with the Welz powermeter it shows right 0,5 - 1 -2,5 and 5W. With the Stabo it shows 0,6 - 1,2 - 2 and 4,8W.

  But at least it is repaired and I could use or sell it now.

Here the picture from both meters. Well, analogue meters might be a bit outdated. But it was fun to be able to repair something.

Then I remembered I had another broken meter. Well, it is a case of a meter that I never use. It's a Daiwa VHF/UHF SWR meter. Whatever power I put in both meters didn't move. I did a quick check on the pointers of both meters, they moved allright. So, easy as that something blocked the signal. Then I remembered I did a quick check before about 4 years ago and that revealed both switches are just very bad. Probabely corrosion because I actually never use this meter. I decided to use contact cleaner and compressed air to blow any corrosion off as far as it is possible from the out side.

Well, it worked well after some fiddling with the switches/air and contactcleaner. I measured all contacts and it was working again. Connecting the FT-817 showed movement of both meters again. Hopefully it will stay in good condition now. Or may be I should leave a note inside in case I have to open this meter again in about 10 years ;-)

SWR/PWR meter repair - hold your breath!

 So unfortunate I coincidentally dropped met precious Welz SP-15M SWR/Power meter. From the outside there was no real damage. But unfortunate the meter's pointer wouldn't move when applying power to it. I bought this meter in 2011 on a radio rally and it went with me at several portable occassions. It is a nice and accurate meter excellent for QRP and I don't want to lose it. So searching for a solution I arrived at the TRX lab youtube channel about the repair of a Diamond SX 600. At 4.05 minutes Peter shows a easy way to measure the mechanical voltmeter itself. So, I tried. Between the terminals my meter showed resistance. The meter is not stuck ( you find it on the internet as most common fault). But applying voltage on it with both the multimeter and a 1,5V battery the voltmeter still didn't show any movement. I also measured if the voltage pickup was correct when I was TXing and that showed that there was nothing wrong on that side. Not shure what to do now....I asked Peter and got the answer it could be a mechanical issue. Of course, there are not much electronics in a simple SWR/PWR meter. It consists of some coils, diodes, switches and a voltmeter. What else could it be?

After a good night sleep I was thinking that the fault could only be at the volt meter itself. For that I had to take it out of the housing. First of all I desoldered the wires and the capacitor that was soldered over both terminals, not the easiest job since wires were wrapped around the terminals. After some effort I got the bare meter in my hands and I could finally measure the meter again and.....it showed no resistance this time! To research the fault I had to take it apart. A very delicate job with my thick fingers. But as you can see on the photo I managed it.

Next thing was examine the actual inside for any damage with a magnifier since this is really something small. Luckely my phone has a excellent magnifier as well and I managed to picture the problem.

 Can you spot the problem? It is the small spring which is not connected to the terminal anymore. Remember this is very tiny. Personally I can only see it with a magnifier. To solder it you need a steady hand and hold your breath. At first I soldered it but the spring had moved in a wrong position. At a second attempt I got it right. A quick measurement with the multimeter showed resistance again and I saw the meter move as well. Now it was just a case of rebuild the thing and test it.

A quick test with my CB radio which previously showed that it has 3,5W out . After the repair nothing changed so I guess I don't have to calibrate the meter. Now I really need to be more carefull with my equipment. However it is a miracle this didn't happen before since portable use isn't always the best for this kind of meters. I might search for a digital alternative to bring with me in the field and keep this meter in my shack.

Friese 11 steden contest 2022

 Since this is a primarily local contest I'll write this post in the Dutch language. If interested you're welcome to translate it with google in the language you prefer.

Vorige week was ik de PA-beker contest vergeten. De Friese 11 steden contest wou ik zeker niet missen. Dus toch maar in de agenda gezet en alles voorbereid. Voor degenen die het nog niet weten, de Friese 11 steden contest heeft natuurlijk te maken met de legendarische schaatstocht. Het doel in deze contest is zoveel mogelijk stations te werken waarbij rapport, QSL regio en plaatsnaam als uitwisseling geldt. De multipliers zijn de 11 steden van de beroemde schaatstocht en als 12e multiplier de kluunplaats Bartlehiem.

Dit jaar werkte ik met de Icom IC-7300, 100W, Heil Proset Elite Ic headset en de antenne de inverted-V doublet.  Dit werkt al jaren prima en het was nu zeker niet anders. Wat mij opviel dit keer was dat er veel amateurs klaagden over veel storing en dan wel zo erg dat het hun ontvangst haast onmogelijk maakte. Zo hoorde ik PA1AT uit Yde die al na een paar QSO moest stoppen omdat hij gewoon niks meer ontving. Daarnaast was het aantal deelnemers gering, waarschijnlijk te wijten aan sport op TV? Het is maar wat je belangrijker vind. Zelf heb ik vrij snel 11 multipliers kunnen werken, alleen Hindelopen ontbrak. Waarschijnlijk was er geen amateur in of bij Hindelopen die aktief kon zijn op 80m, erg jammer, maar volgend jaar beter. Leuk om weer veel bekenden te werken, veel amateurs doen elk jaar mee. Het meest vreemde voorval deze contest was een PD amateur die mij zo nodig tot 2x toe een rapport moest geven. Voor alle duidelijkheid de amateur in kwestie is in overtreding en ik mag volgens de regels niet eens een QSO met hem maken wat ik ook niet gedaan heb. Ik ben niet van agentschap telecom en ook niet van de politie dus ik geef er verder geen commentaar op. Alles bij elkaar was het toch een leuke gezellige contest en kijk ik weer uit naar de volgende keer.

#60m TL8ZZ Central African Republic worked



Tnx to PA4O Peter I noticed that this DXpedition was now on 5356 FT8 F/H. After trying almost the whole week now it was easy to work them tonight.

#60m Guinea Bissau worked

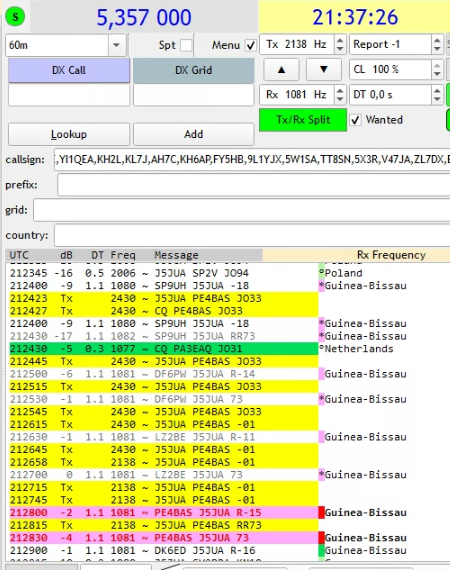

Lucky this time. J5JUA was very strong and I found a empty spot in the waterfall...new one on 60m for me.

DX sunday - Saved by PB7Z

 This morning I already noticed the bands would be full of DX. I hoped for some nice DX contacts. But with the WAE RTTY contest on it was a bit difficult to receive the DX. Talking about contests, I totally forgot the PA-beker contest today.

I only had time in the afternoon/evening today. And while I write this I still hope for some DX showing up on 60m. I saw TL8ZZ Central African Republic) and FJ/SP9FIH (St. Barts) yesterday evening but was too tired to continue calling in the huge pile-ups.

Today my QSOs almost didn't happen, I had the luck I had some back talk with PB7Z via internet. We were both trying for TL8ZZ on 12m. But after one hour trying I decided to QSY 10m to try. Just when I switched to 10m I got a message from Bernard that TL8ZZ was replying to me. So I immidiatly switched back to 12m and made the contact after all. Wow, if Bernard had not seen it I would have missed them. After that I went to 10m and worked them after calling once. At the same time FJ/SP9FIH was on at 10m only 1 KHz above TL8ZZ. I turned the beam and made the contact. The benefit of having a directional antenna! Talking about that, a bit later Bernard warned me T88WA appeared on 20m. I could barely see him between the RTTY sigs. But I managed to get him to reply to me. Only the RR73 was just on the stream that I could not see. Luckely Bernard has a beam and came to the rescue, He received the RR73 and send me a copy to verify. Well, it was a bit strange....something like a hybrid contact. Some will say this is not valid, however I'm in the log...

On 30m I worked V51LZ (Namibia) and HB0/HB9LCW (Liechtenstein) both new band ones.

Hey I do some SSB as well if time allows. The problem is that I have to be in the shack actually. FT8 is done mostly remote from my laptop/tablet or phone. On SSB I worked Phil K4OMD from Ft. Lauderdale FL. He is a belgium guy and we talked in our native language Dutch. I also worked V31XX (Belize) on 10m SSB after I worked him on 12m SSB yesterday.

Thanks to PB7Z this was a successful DX day.

FT8 basics that some HAMs still don't understand

 Not that I am an expert in FT8 communications but some basics are still not understood in the HAMradio FT8 community. I thought to just write them down here and hope someone will learn from it.

On the TX side:

 First of all I want you to understand that almost every transceiver has a transmit audiofilter. Dependent on your transceiver this audiofilter can be set at wide or small. But even on wide, it will not be wide enough for digimode covering a bandwidth of about 3000 Hz with maximum audio. To transmit with a constant maximum audio frequency you need to use "fake split" to set the transmit frequency to compensate in that way you always transmit at maximum of the audio transmit filter. Of course this only works if your radio is connected via CAT control to the software. The benefit is that you will not transmit distorted audio and harmonics (cleaner signal) and you will have equal power output all over the FT8 frequency spectrum. Of course I assume you understand how to setup the audio output to the transmitter, it should transmit with minimum ALC.

A beautiful signal from HA8BE on the 60m band. Wipes out most of the signals...

I've been posting about this before: https://pe4bas.blogspot.com/2021/01/to-all-ft8-lovers.html

On the RX side:

 Second is the RX bandwidth. Of course, if you use an old radio, you will be limited to about 2500-2600Hz. But most HAMs these days are getting more sophisticated equipment, especially those that are interested in the digital communication modes like FT8. A very populair radio, for instance, is the Icom IC-7300 which is a SDR radio. It can listen to a bandwidth of 3600Hz. I know other more sophisticated SDR radios can listen to 4000Hz or even more. Still most of the FT8 QSOs going on are limited to 200-2600Hz. Why?  Really, is this my misjudgement? Are most FT8 users equipped with 20 year old transceivers? I don't really think so. Spread out! Use the whole bandwidth...

20m on a random time. A lot of spectrum is free to use!

Deliberate QRM?

It is also wise to check the DXcluster and Hamspots.net before you transmit. So many times I see stations transmitting at exact the same spot in the waterfall as a DX station they probabely do not hear. A empty spot in the waterfall does not always mean it is actually free to transmit. It can happen by accident of course. Most times you will be notified by others to QSY (change frequency).

Just an example

 Have you ever been listening to DXpeditions that transmit with F/H (Fox/Hound). This is a great invention. What I do not understand is sometimes stations are calling in the same period as the DX. I really don't understand? Why calling if you don't see the DX station at all? Do they think the DX stations wil mysteriously get out of the noise for them.....or magically change periods just for them? Strange things happen....come on....check if you are in the right period! Sometimes this happens by accident...though I have seen stations calling in the same period of the DX for over 30 minutes.

Well, have you seen anything annoying on FT8 (or other modes)? Have any tips for others? Please comment. Hopefully someone has learned from this post.

TBDXC Bands Alive HF Ultra Marathon - good to know!

  Remember my posts about the True Blue DX club HF marathon? Probabely not. It's one of many marathons over the year. This one is particulary for CW and SSB. The club wants to increase the use of SSB and CW on the (HF) HAM bands. A nice thought and I welcomed it. I registered for their marathon since you don't have to be a member to participate. I uploaded my logs and became 6th in 2021. A nice certificate was received. I thought it would be nice to upload my log to this years marathon as well. I did....but then I got an e-mail. Too long for this blogpost to just copy&paste it here so I publish the most important part:

Therefore, if you enjoy FT8, or you use it ‘because there is nothing else’, or to work a new one ‘no matter how - just as long as I put it in the log’, we wish you all the very best in your ham radio activity, but the TBDXC is not the Club for you.”

I did a quick read and first thought it was about their HF marathon. But it isn't. They probabely send out this e-mail to everyone both members and participants. I'm not a member of this club and I will never be. I enjoy all kind of communication. I'm not limited to SSB and CW alone. No, the TBDXC is not a club for me. But I like their marathon.

Luckely the e-mail contained this:

"the TBDXC as a Club is not “against” FT8. This has been said and repeated many times, but, yet again, this essential point is often misunderstood or ignored."

So if you like to participate, and like me you like to do some FT8 and other digimodes as well, you don't have to be a member of the TBDXC.

Currently I'm 5th in the LP SSB category.

#60m Togo worked

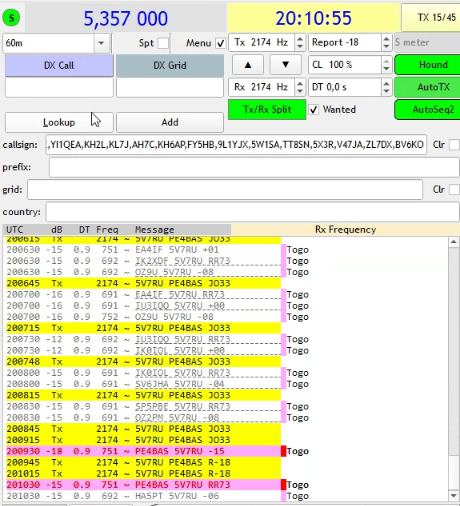

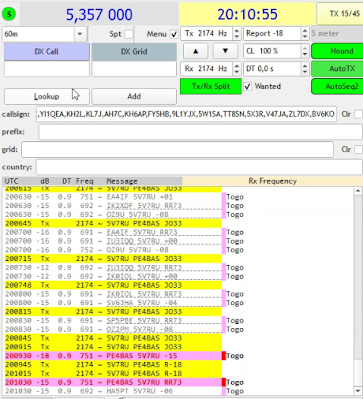

Worked 5V7RU on 60m this evening. The contact was almost lost since some kind of strange broadband signal was wiping out all signals on the 60m band. Luckely a few seconds later everything came back and I received the RR73. A new one on 60m. Decided to remove my last "new one on 60m" TY0RU from my log. I'm not in their log on 60m and it seems most of the time there was a pirate active with the TY0RU call. I really don't know what fun it is to mislead other HAMs, most of us will not understand...

DX sunday

 Terrible autumn weather today gives an opportunity to stay behind the radio the whole day. Or at least most of the time. I already noticed that there are a lot of DXpeditions on air lately. Several from DXCC I never worked before. A good test for my 4 band square halo again. But whatever the antenna is, we are all depending on good propagation of course.

First of all, several days ago I tried to work P29RO from Papua New Guinea on 40m FT8. I received him reasonable well. The miracle happened and P29RO came back on my first call with a -04dB report. But then it happened, some digital signal wiped out everything and I was not able to see anything at all. Next day I checked the online log and it seems they did receive my report, I am in the log of for 40m. Not really satisfied about this contact I decided to chase them again today. It resulted in working P29RO on 10m and 17m both in.....CW. Did you know that Papua New Guinea is one of the most linguistically diverse countries in the world. There are 839 known languages in this country.

Something else occured to me today, just a few minutes before I worked P29RO I worked 5V7RU from Togo. Just another African country I thought I had already worked. It was a pretty easy contact. But this was actually a new DXCC for me. I was not satisfied with this as well. It would be nice to work them on SSB or CW. Unfortunately I never heard them or see them spotted on the DX cluster. Worked them today on 10m and 12m with FT8.

This morning I noticed a new DXCC active on 10m FT8. It was T88WA from Palau. 10m normally should be no problem for me, their signal was strong. But no matter hw I tried I didn't get my signal through. I must have been trying for over 2 hours till their signal vanished into the noise. It puzzled me since I saw many Dutch stations made it into the log. After lunch I checked everything again and noticed my antenna switch has been into the wrong direction. I was transmitting on my inverted-V instead of the 4 element LFA. How stupid. Luckely I could just see them on 15m FT8 and after about 15 minutes I was in the log. T88WA has an realtime log search, how convenient!

The 12m band was in great shape today. I worked 3C3CA Equariotal Guinea, J28MD Djibouti and FJ/SP9FUY Saint Barthelemy Is.. Not shure if the square halo is that good, but it seems to radiate well. My signal is certainly getting there.

Finally I decided to do some SSB calling on 10m into the direction of the USA. It's what I really like. And within about 25 minutes I worked 6 stations from USA and Trinidad&Tobago.

Certainly a good DX sunday...

CQWW DX SSB 2022 review

Event: CQWW DX SSB contest 2022
Section: SO Low Assisted 10M
Logger: N1MM+
Station: Icom IC-7300 @100W
Antenna 1: 10m LFA @14m
Antenna 2: 4 band square halo @15m
Antenna 3: 2x20m inverted-V doublet @12m

Started saterdaymorning late. 10m was not open yet here. At that moment I was not shure I would do a single 10m band effort like last year. So I started on 40m and 20m. This was also a god test for the "new" square halo antenna I previously made. And I have to say...compared to the multiband vertical it is a excellent performer. It is clear to me that most of the stations I heard I could work as well. For instance KL7RA (Alaska) was barely above the noise. But I had a reply after the first call which surprised me. Same for VJ4T. Below a map made with all 1000 QSOs I made.

Oh yes, I heard the DXCC I wanted to work. V85RH and VK9C. But others did as well and I might have a chance another time. I tried a few times but the pile-up was just too large and signals too low.

Although I was active on all bands except 160m (I forgot I don't have a 160m antenna aymore) I aimed for 10m only. So most of the contest I was on 10m to work as many DXCC/stations as possible. I made quite a few runs into the direction of north america, always great to do that. Below a map from my 427 QSOs on 10m.

Surprisingly, and I believe never did this before. I worked 100 DXCC overall. Incredible to just contact so many countries in one weekend.

According to the analyzer I use I operated 30 hours and 1 minute in total. Which is a lot I think. Yet, I was not on the radio all the time. I just had breaks to drink coffee/tea and eat lunch/dinner. Besides that I had to go out with my XYL to do the necessary shopping for the week. I did have a good sleep as well. So after the contest I was tired but not really exhausted.

I always remember some memorable moments. Like the station in Sudan (ST0HQ) that was giving me a report in dutch. Another memorabe moment was a surprise call I got on 80m by Elsie M7ELC, probabely the youngest female operator/contester in the UK. She is the daughter of fellow blogger M0YKS Simon. You can view a video about the contest featuring both here.

I also worked fellow blogger VE3VN Ron on 15m. Ron has a interesting blog full of details about the hobby. I met Ron before on 15m and never heard him on another band. He might do a single band 15m effort?

Funny is also that some stations, even when I never ever had a contact, seem to be regular readers of this blog. According to the reactions from some of these stations. If you read this it is appreciated and always nice to make the contact were ever you are. I had a lot of fun this weekend and certainly broke last years score. Surely I will be in the contest next year and will try to beat this years score.

CQWW DX SSB oktober 2022 (video)

Upcoming CQWW DX SSB 2022

 Just download and checked my results in last years CQWW DX SSB contest. I became number one in the Netherlands on 10m single band. Not a bad result after all. If propagation is as good or better next weekend I will again try to do a 10m single band effort. However at night I will be on other bands as well if propagation on 10m is over.

There will be a lot of interesting DX stations on air in the contest. I'm particularly interested in working JD1BQP from Ogasawara, V85RH from Brunei, VK9C from Cocos Keeling Isl. and YJ0CA from Vanuatu. All announced to be active in this contest and hopefully active on 10m were I have best chances to work such DX. They would all be new DXCCs for me.

#60m TY0RU worked (or not?)

 I had only 10 minutes in the morning before going to the job. Just when I decided to close my station TY0RU came back for me.

But received no RR73 unfortunately. It seems they suffer from high QRM levels.

Checking the log this afternoon says I'm not in the log on 60m. However I'm in the log on many other bands. As a matter of fact I worked them this weekend and didn't even mention it in my last post. It obviously didn't impress me, I worked 5 of the 6 bands in about 20 minutes and only 15m was worked on Sunday because I forgot to work it Saturday. I really don't like it when you don't have to try at all but work such a DXpedition at once. So, I will try again for 60m if possible, I believe the DXpedition is there till tommorow.

So different from my first QSO to Benin in 2009, it took me days and hours just to work them only on 17m.

Update 27-Okt: On a total chaos 60m band FT8 frequency I got a reply from TY0RU again this morning at 5 UTC. And again no RR73. TY0RU has a strange way of operating. 90% is calling CQ and only few QSOs are made. Besides that the number of retry when he does not receive the RR73 or the R report is only 2 times before getting back to calling CQ. It is like the operator doesn't care at all. But I  don't blame them. The DXpedition crew is probabely very tired. Since I think the DXpedtion is on it's last day I don't think I have another chance to work Benin on 60m. Ah well, who cares....

Last weekends QSOs

Luchtwachttoren (skywatchtower) 7O1 as I remembered it.

 Absolutely a interesting weekend historically and radiowise. Sunday morning after listening to the HAARP transmissions, which could not be heard here, I decided to hunt for some DX on the bands. Worked 3D2USU (Fiji) as best DX on 30m FT8. I noticed already that there was a special event going on in our country. The celebration of 60 years Cuba crisis. To the public known as the cold war weekend with the opening of several important buildings that played a role in the cold war. Some of those buiding feature a HAM radiostation as well and so it was possible to work some of those interesting locations.

Well, long time ago I had to go to school. At that time I could only get there by bicycle, very common in the Netherlands. Every day I passed an old tower overgrown with weeds and surrounded by trees. I soon learned that it had to do with the cold war. At that time we had no internet and you couldn't find much in books about it. Later I found out it was a lookout to warn when russian airplanes would come over to invade the Netherlands. It has been competely restored lately. I had no time to visit it this weekend but I might visit it somewhere in the future. Some HAMs did activate PA6KLD from the location and I was happy to work them last weekend. They were transmitting with only 3W SSB on the 40m band yet they came in 5 by 9 at my QTH which is about 25km east from the tower.

I had some contact with PD1GAW Gerard who lives in Ulrum not far from the tower. He told me he visited it and he also gave me the frequencies to work several of the "special" locations. Thanks to that I finally worked 6 SES stations. PG60CUBA (Commandopost MBB, Grou), PC60CUBA (De IJssellinie, Olst), PA60NN (Luchtwachttoren 3T3, Nieuw-Namen), PA6KLD (Luchtwachttoren 7O1, Warfhuizen), PF60PENM (Schuilkelder, Panningen), PB60CUBA (Commandopost BB, Rijswijk). The nice thing is that I got a message from an old friend that I know from 11m years ago. In the mean time he also got his license. He told me he heard me making contact with PA60NN and was on that location. Later on he was allowed to take the mike and we had a small chat. In between the contacts I also gave some CQ on 40m in dutch so I hoped for some more SES stations that might be listening. But it was PA0FRI Frits that came back to me. Frits is well known for his incredible website full of useful info about our beautiful hobby. We talked a bit about our favorite subject which is antennas. He told me that the design of the antenna current meter was updated, I should check it out soon on his website.

Later in the afternoon/evening I decided to do some CQ calling on 10m, one of my favourite bands. With the 4 element LFA beam into the direction of north america I had a lot of fun making contacts in SSB. Hopefully the propagation will continue to be good for next weekend when the CQWW DX SSB contest is on.

Interesting read in dutch (translate if needed): https://www.luchtwachttorens.nl/

HAARP Ghosts in the air glow

If you do some experimenting and research in this hobby I like you to point to this experiment:

Please find more info on the website:

https://ghostsintheairglow.space/

Update Okt.23: I listened this morning but could not hear any signal. I did not check VOACAP to see if it was possible to hear Alaska.

History of the 11m HAM band

  We know the 11m or the 27MHz (27-Mc) band as CB (Citizens Band) band. Some people refer to it as the "chicken" band. CB radio was very populair before everyone had a mobile phone and internet. When you search for the 11m band history you will read numerous sites about how 11m CB started in 1958 with highlights in the seventies of last century including movies like "Smokey and the Bandit", "Convoy" and "Handle with care". But not many know that the 11m was a legal HAM band at least in north/south America, Australia, New Zealand, South Africa and south-west Africa from 1947-1958.

Following several publications first experimental license was given to W6XBC (eXperimental BroadCast) in 1933, the experimental frequency was 27,1 MHz. Actually 27 MHz was considered VHF at that time. Transmissions took place from Yuma, AZ. The aim was to see if VHF was useful for remote broadcast pickups. They transmitted 1 hour per week and asked for reports. At around the same time the same frequency was used by a ship that was on arctic expedition. They used several callsigns, one of them was W10XDA.

Searching for more historical research I found that first commercial licenses were given in March 1928 to 6XAR in San Fransisco CA transmitting on 27,523 MHz, 2XBM in Water Mill NY transmitting on 27,900 MHz and 6XJ in San Diego CA transmitting on 27,900 MHz.

In the WW2 years 27MHz communication gear was used in tanks both by Germans and American armed forces. A story that can be read in several old CB magazines is about discovering 27MHz signals heard from German tanks stationed in Africa. Fiction or real, a HAM from Rhode Island recorded some strange voices he heard on the 11m band. One day he played the recording to a friend who understood German. This friend realized it was some military communication between tanks and base stations. When the US Navy was called in they found out it were tanks from general Rommel in North-Africa. Although the signals came in almost everyday it seems best to receive was at a few square miles in the Rhode Island territory. Intelligence immidiatly took over an old farmhouse at the sweet spot en installed a few 11m receivers and German translators. Every information that was transmitted in North-Africa by the German tanks and base stations was monitored and given to the British. After the war the 27MHz was no longer in use in the military but it certainly proves that this frequency did do well in difficult circumstances.

  Other users of 27MHz were doctors that used this frequency for medical uses like diathermy. This, of course, was a huge source of QRM and so the 11m was not really a populair HAM band. In 1947 the FCC allows use of the 11 meter band on a shared basis with Industrial, Scientific and Medical devices. Most HAMs operate on 11m with their 10m antenna, not really effective. In 1948 Firestone Tire Company granted experimental license W10XXD for 27.255 MHz (Ch 23) using two 3Watt transmitters. All documentation about this experiment is lost but these might be forerunners of CB radios as we know it now.

Did you know that the US radio technical planning board proposed to lower the 10m amateur band by 1 MHz to 27-29 MHz. Although this proposal was later withdrawn, the ISM band (27,185 - 27,455 MHz) was not established until 1945, and the FCC hinted that it could be distributed to amateurs as a secondary service.

The 11m HAM band has been changed several times:

27.185-27.455MHz (March 26, 1946 to April 29, 1947) FCC Order 130-D (March 13, 1946), Federal Register Notification (11FR3158, March 26, 1946)

27.160-27.430MHz (April 30, 1947 to June 30, 1949): FCC Order 130-M (April 10, 1947), Federal Register Notice (12FR2815, April 30, 1947)

26.960-27.230 MHz (from 1 July 1949 to 10 September 1958)

The 11m HAM band was not only established in the USA. It seems 11m was also allowed in the America's (Canada, central/south America), South Africa, Southwest Africa, Australia and New Zealand.  International DX contacts were certainly possible.

But what did the HAMs do on 11m? Did they use it for nearby contacting or did they do make some DX? I searched in some old magazines to find evidence and found some remarkable things. Activity without the need for a experimental license was from 1947-1958.

-  1947 - The mountaineer amateur radio association operated W8BOK/8 at fieldday with 6 stations simultaneously. One of the stations operated "27-Mc phone".

- W3CDQ is planning a 27-Mc. 'phone-cw rig' for a net composed of amateurs connected with the Central Radio Propagation Lab. (CRPL) ionosphere group.

- Several amateurradio stations researched meteorscatter on 27-Mc

- 1948 - QST June 1948 reports W9AND,  worked EL5A, OX3GE, VO4T, KH6GT, KII6BI and CXlFB. W6ZZ reports working J9AAI. All on 27-Mc.

- 1950 - The 16th ARRL International competition also counts (DX) contacts on 27-Mc.

- 1957 - The FCC announces the end of the 11m HAM band to use it for "Citizens Band"

"Save 11 meter" contests were hurriedly organized among the Hams to show the FCC that

there really was life in the old 11 meter band. About 400 stations rose to the occasion, and

many exotic calls were to be heard, such as CX2AY, CN8JW, XE1A, ZP5IB, VK2QL, and

KC4AI. Unfortunately these "protests" are not enough and didn't help to convince the FCC.

The 11m HAM band came to an end. September 11 1958 was the date that 11m would be known as "Citizens Band". In fact Al Gross W8PAL is by most seen as the man that invented CB, although the idea was already brought up in 1938 by Herbert Brooks W9SDG. His letter to the editor of QST magazine described a theoretical "Citizens Band" nearly identical to what we know today. Al Gross actually developed equipment for the UHF band since CB on an experimental basis at that time was on 250MHz and later between 460-470MHz. It looks like he had the first official CB license issued in 1948. But W2XQD was really the first one with a CB license issued February 14, 1947. It would actually take another decade before CB started on the 11m band.

Related reading links and documentation:

Detailed information about the schooner Morrissey arctic expedition radio experiment:

https://www.rsp-italy.it/Electronics/Magazines/QST/_contents/QST%201934_12.pdf

History of the 11m band documentation:

https://ukspec.tripod.com/rf/cb/

https://www.retrocom.com/wtcollect/27_megacycle_history_in_the_u.htm

https://sites.google.com/site/cb465mhz/home

Another article I wrote about Al Gross:

https://pe4bas.blogspot.com/2014/11/historical-first-time-1944-handheld.html
